KLQ6125BA



p1

Bus Model

KLQ6125B

 Seats

 49+1+1

 Dimension

 mm

 12000 x 2550 x 3800

 Max speed

 km/h

 125

 Manufacturer’s max. total  mass

 kg

 18000

 Kerb mass

 kg

 12300

 Rated fuel consumption  26L/100km  Fuel tank  L  8 x 120L composite
 Wheel Base (mm)  6150mm

 Minimum groundclearance(mm)

 240mm

Standard Chassis

 Engine

 YC6L330-30 (Yuchai engine) 330Ps, Euro 3

 Clutch

 Imported clutch 430mm

 Gearbox

 QJS6-150

 ( 6.37, 3.71, 2.22, 1.36, 1.00, 0.74; R5.87)

 Transmission shaft

 Strengthen shaft

 Suspension

 Leaf suspension

 FRONT & REAR stabilizer bar

 Axle

 China front 6.5t/rear 13t axle(final drive3.909)

 Brake

 Front and rear drum brake
 Dual circuits’ pneumatic brake; spring loaded parking brake.
 Electric retarder
 Imported slack adjustor; Imported ABS.

 Steering

 Imported non-maintenance steering gearbox

 Tyres

 Chines brand tire 295/80R22.5

 Others

 Stainless tyre covers; CAN system

Standard Body

 A/C

 HIGER A/C(28000 Kcal, Imported compressor)

 Heater  Without

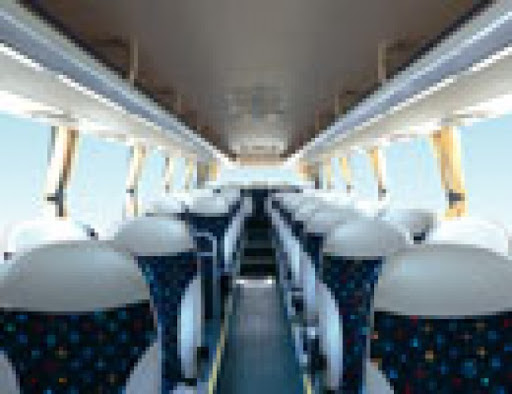

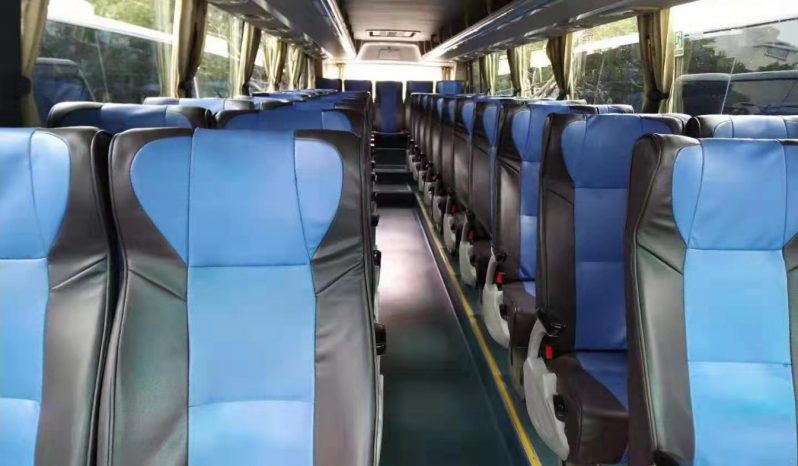

 Seats

 BH02 Seat;
 With driver's seat and tour guide seat

 Passenger door

 Front out swing pneumatic passenger door(remote control)

 Windows

 Sealed side widows;
 Two emergency roof hatch with electric ventilation fan

 Video

 AM/FM cassette player and LCD 17" TV and DVD

 Lamps

 Grand step lamps; inner roof lamps

 Separate switch for top blue white lamp

 LED channel lamp, LED seat number lamp, LED ceilling lamp

 Road lamp for tyres

 Rear view mirror

 Electric rear view mirrors
 Rearview monitor

 Floor

 Plywood floor with leathered

 Others

 PU partition;Front windshield sun visor;high position lamps;electric clock
 Auto fire extinguisher in engine cabin
 Imported paint



Note :  The manufacturer reserves the right to change the technical specs for better improvement without prior notice.
