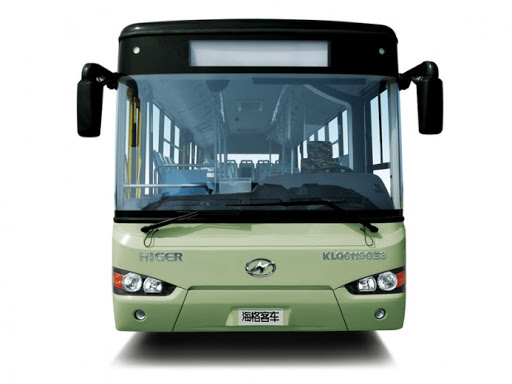

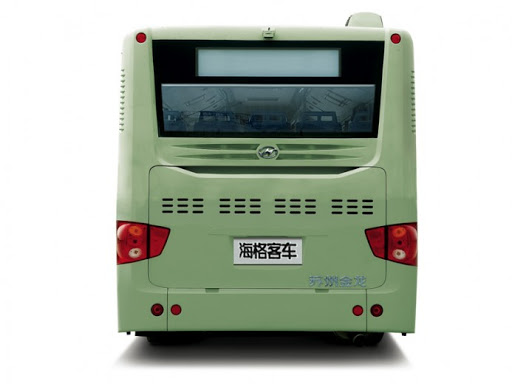

KLQ6129G ONE STEP
Bus Model |
KLQ6129G (12.0 METER) ONE STEP |
Seats |
41+2+1 |
||||
Dimension |
mm |
12000 x 2550 x 3000 |
Max speed |
km/h |
120 |
Manufacturer’s max. total mass |
kg |
18000 |
Kerb mass |
kg |
11600 |
Overhang front/rear |
Fuel tank |
L |
200 |
||
Wheelbase |
6100 |
|
Standard Chassis |
|
Engine |
Chinese Yuchai YC6G270-40 (270Ps, Euro IV) |
Clutch |
SACHS clutch |
Gearbox |
|
Transmission shaft |
Strengthen propeller shaft |
Suspension |
LEAF SPRING |
Axle |
Dongfeng front and rear axle (Disk) |
Brake |
Dual circuit service brake; spring energy parking brake. |
Steering |
Power Steering gear |
Tyres |
295/80R22.5 |
Others |
Stainless steel wheel cover ; with ABS sensor; WABCO ABS |
Standard Body |
|
A/C |
32000 cal/h AC, bock compressor |
Heater |
Without |
Seats |
Foam seat |
Passenger door |
Inner swing passagers doors |
Windows |
Push-pull type window with lower parts enclosed and upper part of aluminum frame |
Emergency roof exit |
Two emergency roof exit |
Video |
DVD with 1*LCD |
Rear view mirror |
Luxurious tie-rod rearview mirror with wide field-of-vision |
Floor |
Anti-attrition floor leatheroid |
Others |
Digital clock; Automatic fire extinguisher device in engine compartment; safety hammer and 4kg fire extinguisher; Color reverse and middle door; Manual Sun visor; Blue blinds window curtain; With destination dashboard, with Wheelchair ramp |
Note : The manufacturer reserves the right to change the technical specs for better improvement without prior notice.
