KLQ6858E4 (8.5 METER)







p2



Bus Model



KLQ6858E4 (8.5 METER)



Seats



35+1+1 (if 2x2 seats); 43+1+ 3x2 seats

Dimension

mm

8490 x 2450 x 3365

Max speed

km/h

115

Manufacturer’s max. total mass

kg

11300

Kerb mass

kg

8400

Rated fuel consumption





Fuel tank

L

220

Standard Chassis

Engine

Chinese Yuchai YC6J220-42 (220Ps, Euro IV)

Clutch

SACHS clutch

Gearbox

China Qijiang S6-80 6 speed gearbox (copy ZF technology)

Transmission shaft

Strengthened propeller shaft

Suspension

Leaf spring suspension

Axle

Dongfeng front and rear axle Ratio:4.3

Brake

Dual-circuit service brake; Drum brake

Steering

Power Steering gear

Tyres

9R20 radial tyre

Others

Stainless steel wheel cover; with ABS sensor; WABCO ABS, Terca Retarder

Standard Body

A/C

Roof mounted dependent A/C, Bock Compressor

Seats

BA01

Passenger door:

Remote control

Windows

Chinses anti-attrition blue leatheroid floor with color points

Audio Visual

G-BOS reverse Camera

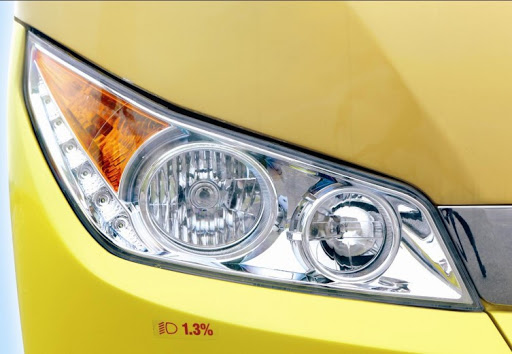

Lamps:

Step lamps; inner roof lamps

Rear view mirror

Electric

Floor

Anti-attrition floor leatheroid

Others:

Digital Clock; Manual Sun visor; Cloth folding window curtain; luggage rack’ 2 emergency roof exit; Automatic fire extinguisher device in engine compartment; Safety hammer;2kg fire extinguisher



Note :  The manufacturer reserves the right to change the technical specs for better improvement without prior notice.
