Bus Model

KLQ6119

Standard seat number



49+1

Rated Passenger

15 ~ 51

Overall dimensions

mm

11490 x 2500 x 3700

Max speed

km/h

120

Manufacturer’s max. total mass

kg

16500

Kerb mass

kg

12300

Rate fuel consumption



26L/ 100Km

Fuel tank:

L

380

STANDARD CHASSIS

Engine

Chinese Yuchai  YC6G300-20 (300Ps, Euro II) – pneumatic type

Clutch

ZF diaphragm spring clutch  (Ø 430)

Gearbox

China Qijiang S6-90 (ZF technology) 6+1 speed manual gearbox- electric odometer sensor
1    3    5
R   2    4    6

Transmission shaft

Strengthen shaft

Suspension

Leaf spring suspension; stabilizer bar;  with strong stabilizer bar connector

Axle

China front and rear axle Dongfeng Xiangfan

Brake

Front/rear drum brake; Dual-circuits’ pneumatic brake; Spring loaded parking brake
Electric retarder (Terca)
Imported slack adjuster; Imported WABCO ABS

Steering

Imported Non-maintenance ZF gearbox

Tyres

11R22.5 tubeless tyre.

Others

Stainless tyre covers;  When speed over 100km, sound and lamp warning; clutch master hose is longer for easier maintenance

STANDARD BODY

A/C

HIGER A/C(26000 Kcal, BOCK compressor))

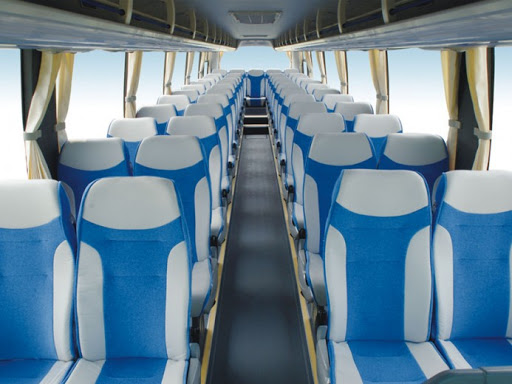

Seats

2 + 2 mount, adjustable passenger seats
Driver Seat (High back rest, shock absorption and adjustable)

Passenger door

Front swing-out  pneumatic passenger door(double sealed; remote control)

Windows

Sealed side widows
Two emergency roof hatch with electric ventilation fan

Audio Visual

AM / FM cassette player and LCD 17”TV and DVD

Lamps

Step lamps; inner roof lamps;

Rear view mirror

Electric rear view mirrors, rearview monitor

Floor

Plywood floor with leathered

Others

PU partition;Front windshield sun visor;high position lamps;electric clock; Auto fire extinguisher in engine cabin; Imported paint







Note :  The manufacturer reserves the right to change the technical specs for better improvement without prior notice.
